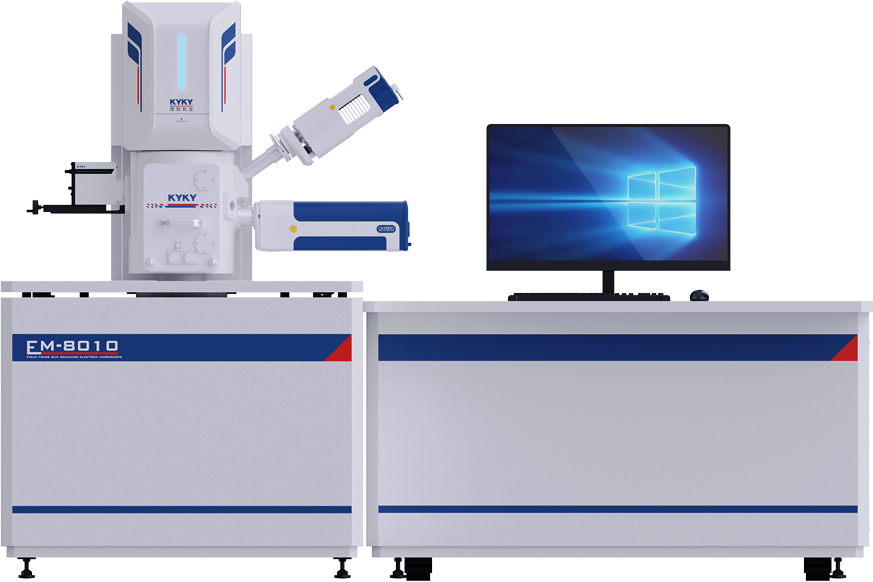

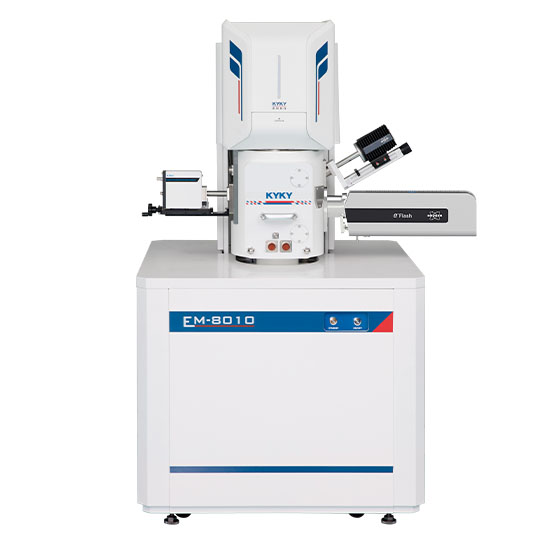

Field Emission Scanning Electron Microscope
EM80 series field emission scanning electron microscope is positioned as an economical Schottky thermal field emission scanning electron microscope with rich extensibility and high cost performance, which is widely used in various fields such as materials science, biology, medicine, chemistry, and environmental science.
Features Functions Accessories Parameters Application
Features
Schottky field emission gun
Multi-stage high performance lens system
High beam stability
Customizable extra-large sample chamber
Simple operation
Rich extensibility and high cost performance
Functions
Customization
Electron Beam Lithography (EBL) Vacuum Interconnection Laser Coupling - Ultrafast Electron Microscope
Electron Beam Lithography (EBL)

Functions: The SEM-based electron beam lithography (EBL) system allows precise control of the scanning path and energy deposition of the electron beam to realize high-resolution patterning exposure. The system adopts advanced electron beam scanning control technology, which supports flexible and diverse pattern design and precise control. In addition to the electron beam exposure function, it also retains the original observation function of the SEM, which allows users to complete the observation and processing of samples on the same equipment, improving work efficiency and convenience.

Minimum beam spot better than 5nm; Probe current: 1pA~20nA; Line width better than 15nm

Application Scenarios: Scientific research and teaching; Microelectronics manufacturing; Prototype device development; Nanomaterials preparation; Biomedical research

Vacuum Interconnection

The vacuum interconnected scanning electron microscope is used for automatic detection of the products transferred by the sample cart, analyze the surface grain morphology, size, distribution and other information, and evaluate the quality of the film.

The vacuum interconnection system allows the sample to be pre-processed under vacuum and transferred to the scanning electron microscope for observation.

The automatic detection and feedback system monitors and records sample labels, position status, and sample handover, observing the sample transfer status by CCD or glass window.

Laser Coupling - Ultrafast Electron Microscope

The ultrafast electron microscope uses external stimuli such as a laser or electric field to bring the sample to an excited state. Another laser beam with adjustable time delay is applied to the electron microscope filament to generate a pulsed electron beam that irradiates the sample surface, and then collects the secondary electrons escaping from the surface to characterize the excitation transient.

Accessories

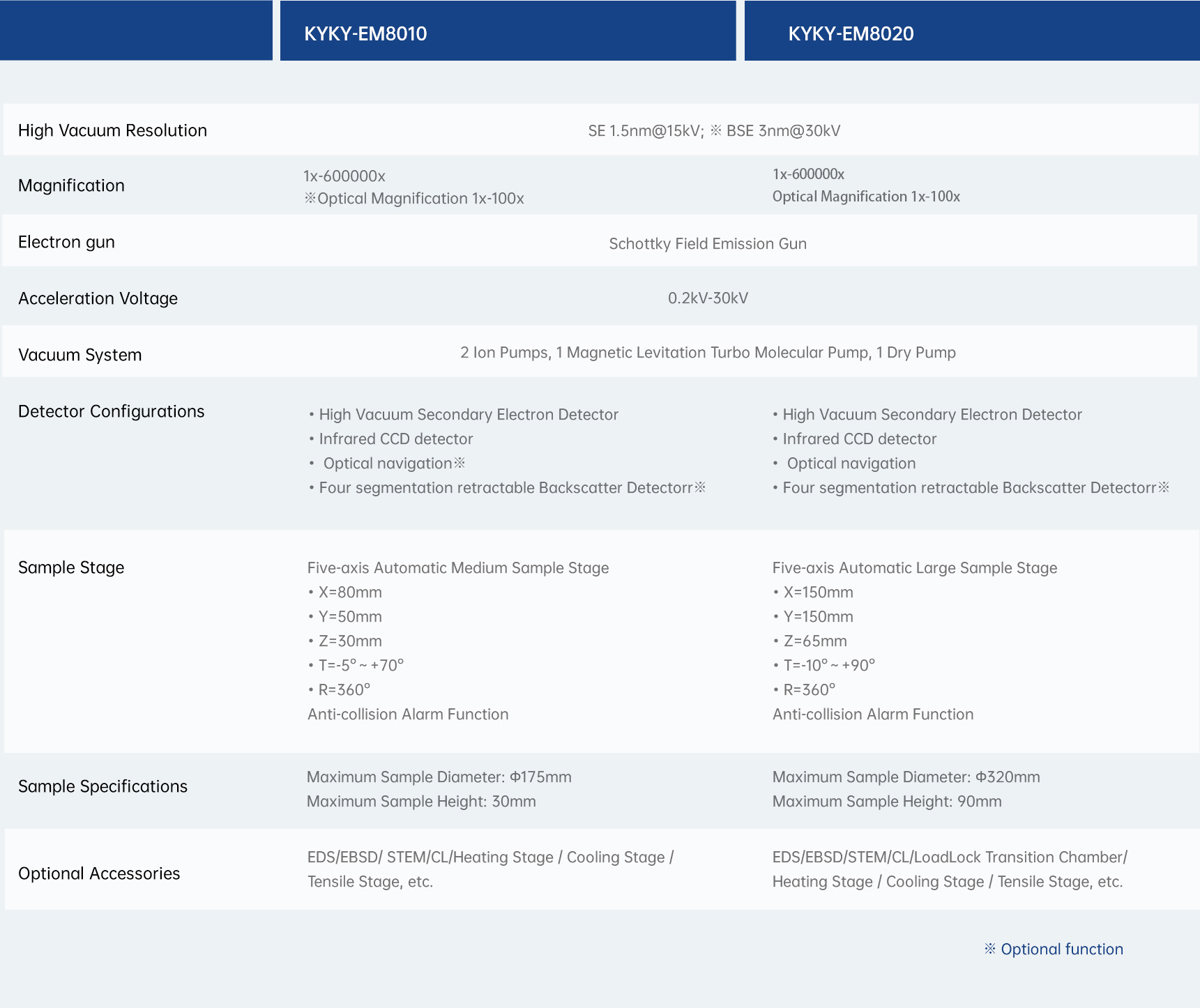

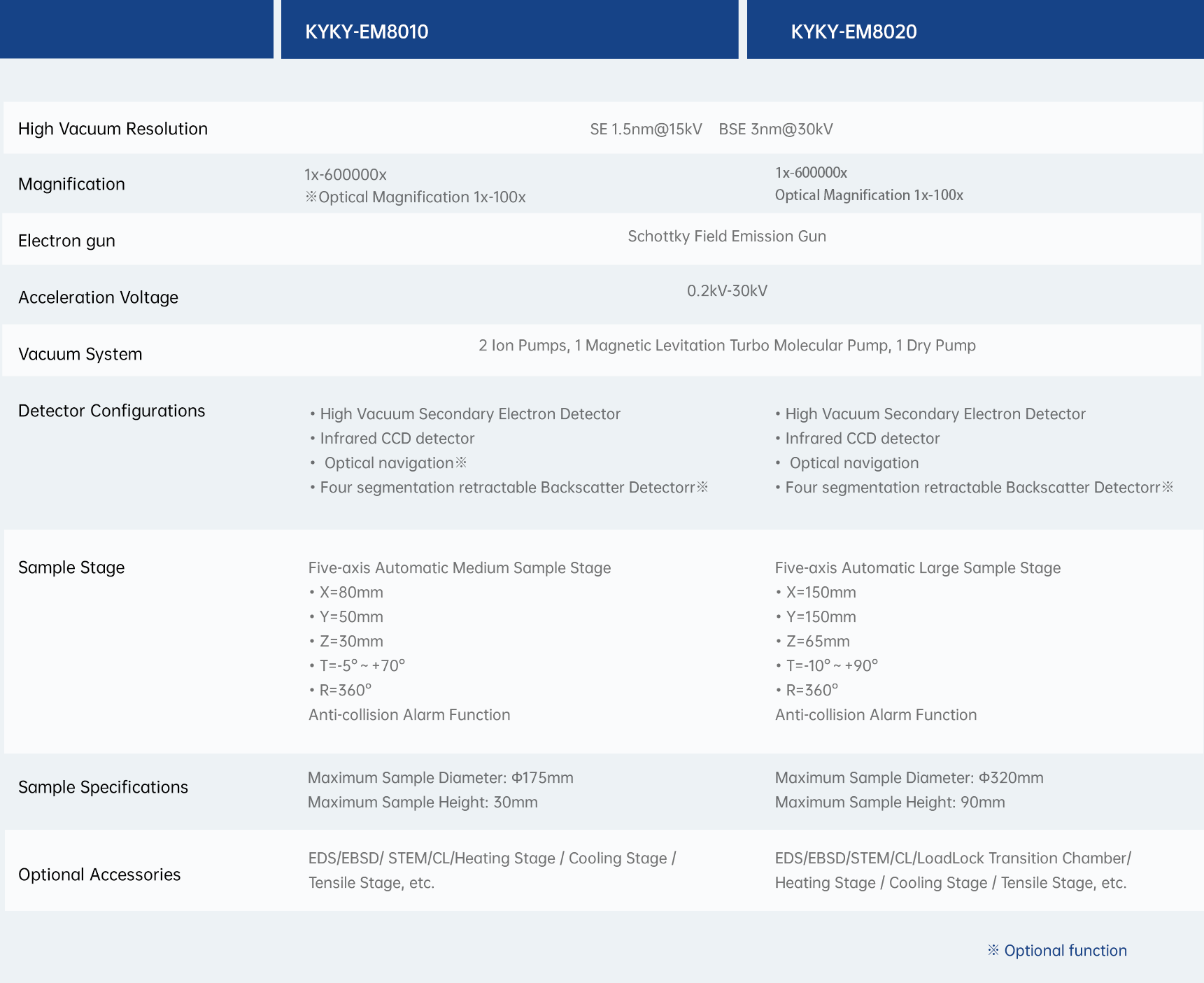

Parameters


Provide customized solutions
Provide you with professional non-standard customized services to meet various application scenarios.
Application
